How to apply Rust Shield^®

Applying Rust Shield, step by step

1.

   01 Step 1 of 6

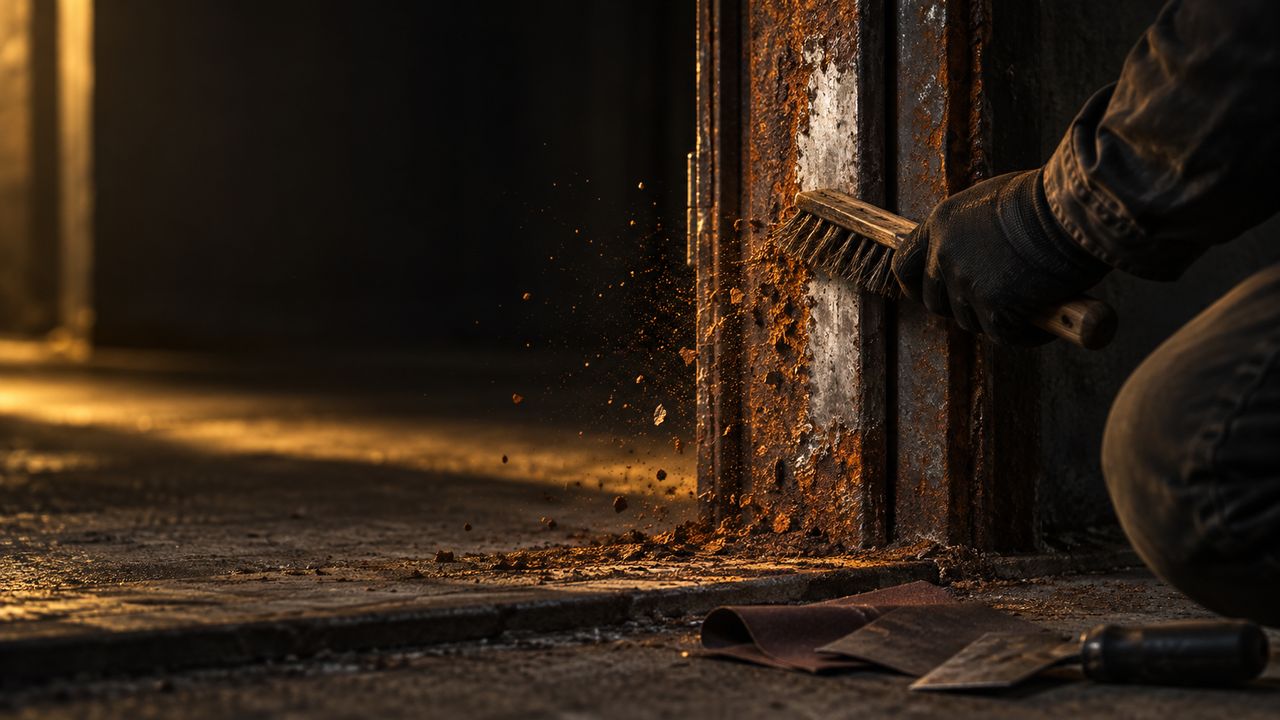

   Remove rust and clean the steel

   Take the corrosion back to sound metal. A wire brush, sandpaper or any suitable cleaning method will do it.

   • Remove all existing rust with a wire brush, sandpaper or emery.

   • Take off loose mill scale, flaking paint and weld spatter as well.

   • Degrease: the surface must be free from oil, grease, dust and loose particles.

   • The steel must be dry. Never coat a wet surface.

   Back to sound, bright metal

2.

   02 Step 2 of 6

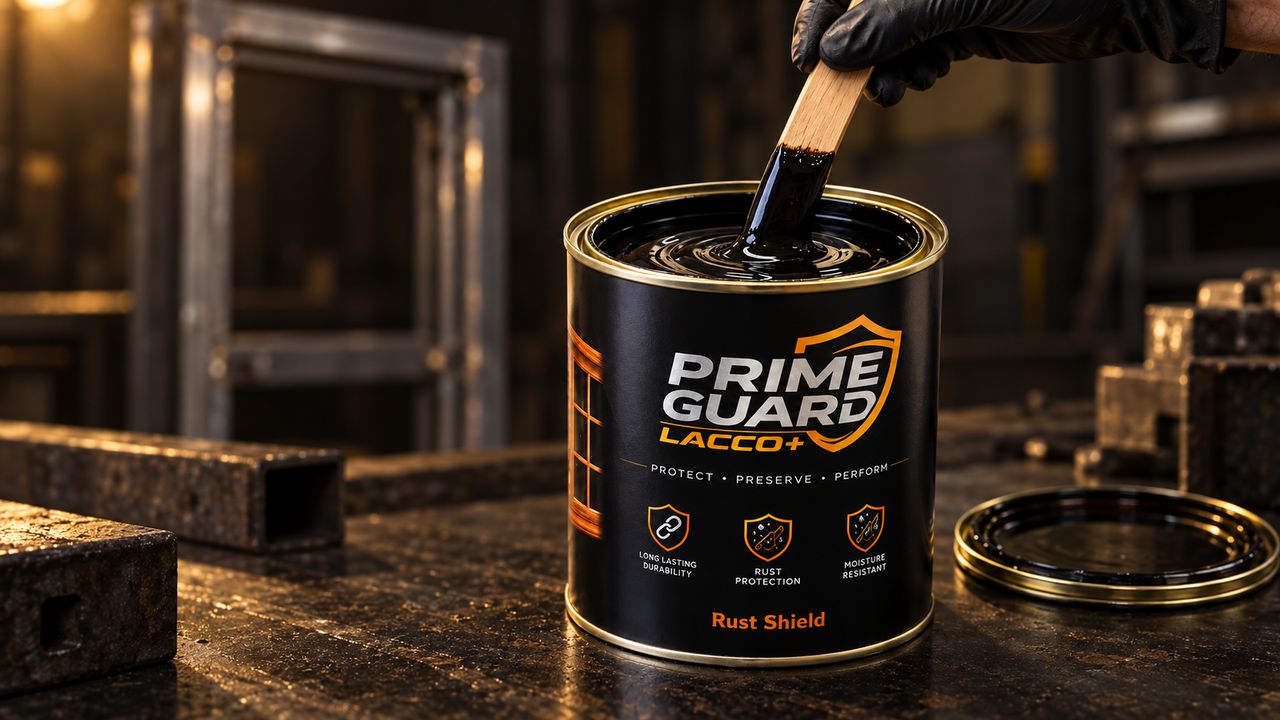

   Stir well before use

   The protective solids settle while the tin stands. Stir from the bottom until the colour and the body are even the whole way through.

   • Stir thoroughly, lifting from the bottom of the tin, every time you start.

   • Do not thin it. RUST SHIELD is direct apply — no primer needed.

   • Close the container tightly after use.

   • Work in a well-ventilated area, in goggles, mask and gloves.

   Direct apply — no primer, no thinner

3.

   03 Step 3 of 6

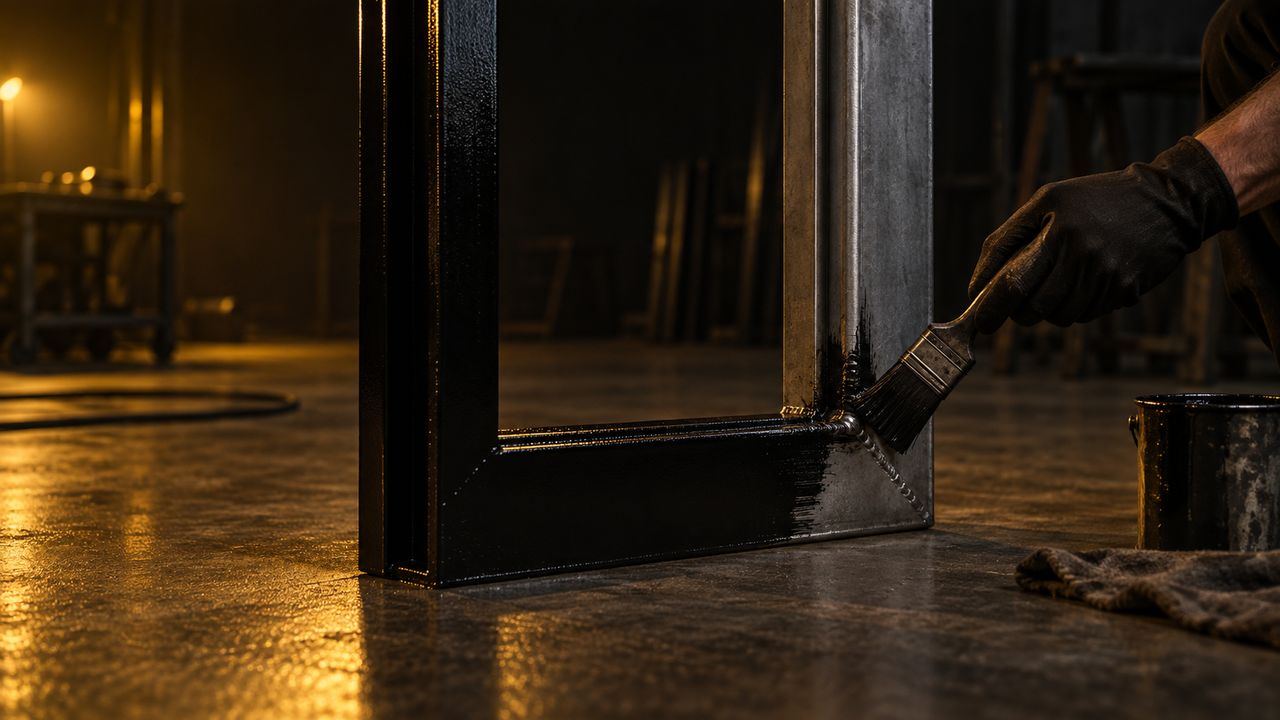

   Apply using brush or roller

   An even coat straight onto the cleaned metal. The joints and the buried faces matter more than the face you can see.

   • Lay an even coat with a brush or roller — no primer first.

   • Cover the contact area between the wall and the metal frame.

   • Work the coating into welds, corners, cut ends and fixing holes.

   • Do not apply on wet surfaces or during rain.

   First coat

4.

   04 Step 4 of 6

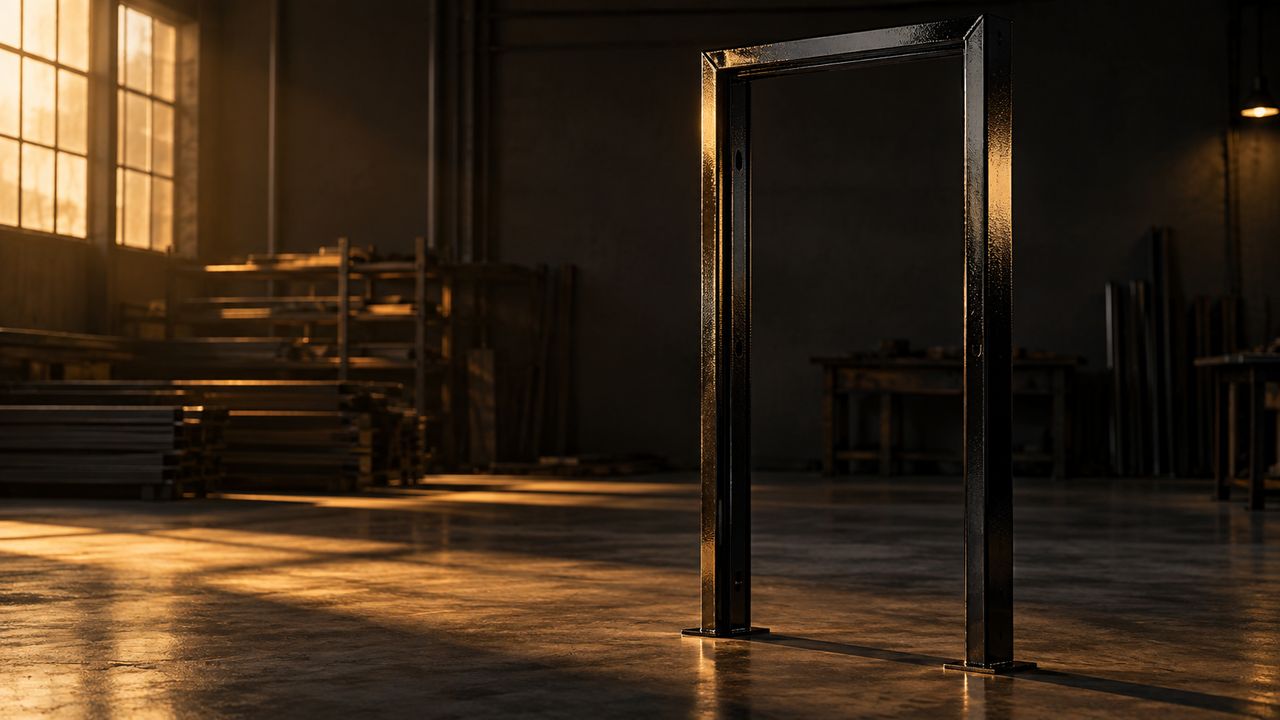

   Allow to dry 2–3 hours

   Let the first coat dry before the second goes on. Two to three hours is the recoat window; humid weather takes the long end of it.

   • Stand the frame where air reaches every face while it dries.

   • Keep it out of rain, spray and settling dust.

   • Touch-test a hidden edge: dry, not tacky, before you recoat.

   • Do not force-dry with heat.

   2–3 hrs before the second coat

5.

   05 Step 5 of 6

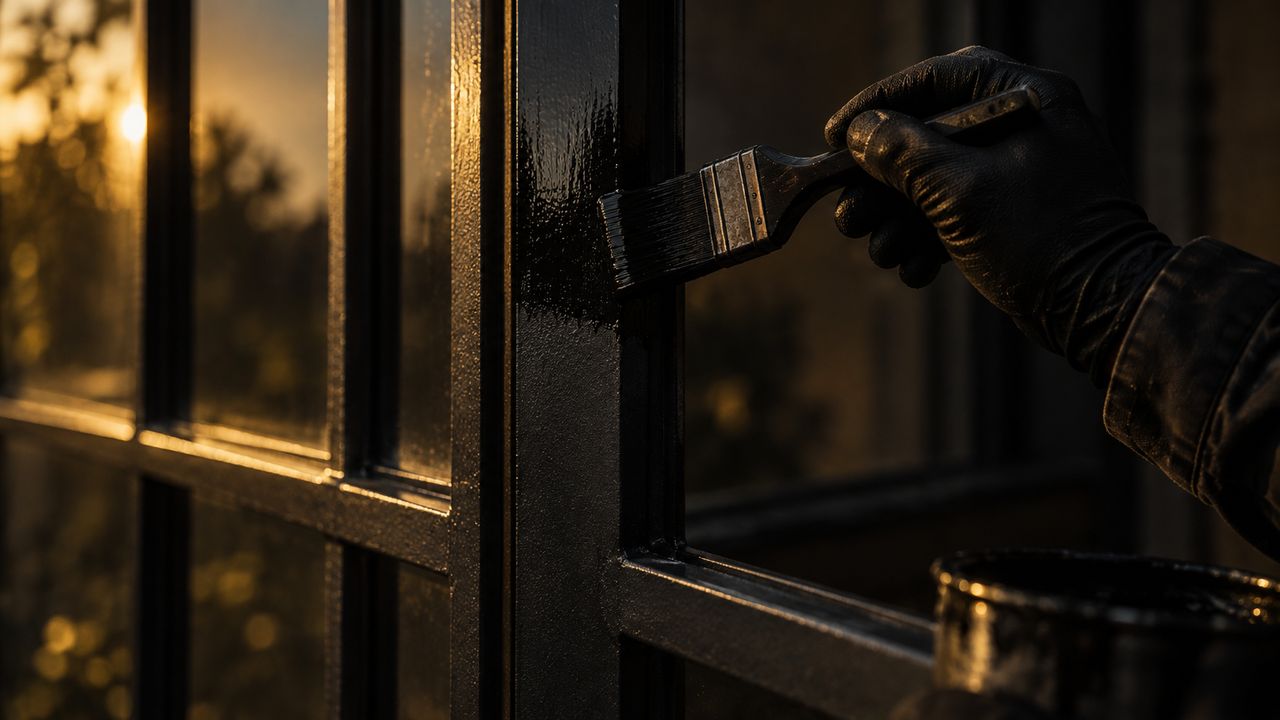

   Apply the second coat

   The second coat is what closes the barrier over the metal. Same method, same attention to the joints.

   • Same even coat, over every face the first coat reached.

   • Check welds, corners and the wall-contact area again for thin spots.

   • Do not stop at one coat — the film needs both to seal properly.

   • Close the tin tightly as soon as you are finished.

   Second coat

6.

   06 Step 6 of 6

   Cure, then install

   Allow 5–8 hours for a hard dry. Install or finish the frame only once the coating has properly cured.

   • 5–8 hours for a hard dry before handling, fixing or finishing.

   • Water should run straight off the coated metal instead of clinging to it.

   • Touch up any scratch from handling before the frame is built in.

   • Store the remaining tin closed, cool, dry and out of direct sunlight.

   Hard dry 5–8 hrs
